A transparent plastic blank can enter a CNC machine with excellent clarity and leave with a cloudy machined surface. In our workshop, I do not treat this simply as a polishing problem. Successful CNC Machining Transparent Plastic depends on how the part is supported, cut, handled, and prepared for finishing. Understanding where clarity is lost during manufacturing helps engineers prevent avoidable surface damage and achieve more consistent results in plastic prototyping.
Why Transparent Plastic Looks Cloudy After CNC Machining
The first thing to understand is that CNC machining creates a new surface. The transparency of the original stock does not automatically transfer to that machined face. What happens at this newly generated surface determines whether light passes through cleanly or becomes scattered before entering the material.
Transparent sheet or block material normally arrives with relatively smooth finished surfaces. Once a cutter removes material, those original surfaces are replaced by microscopic tool paths. Even when a machined face feels smooth to the touch, fine peaks, valleys, and directional marks remain on the surface.
These irregularities change the way light crosses the air-to-plastic interface. Instead of travelling through a consistent surface, part of the light is redirected in different directions. The result is increased light scattering, which we see as haze, reduced clarity, or a frosted appearance.
This is why I separate surface haze from damage inside the plastic. A uniformly hazy machined surface may still provide a good foundation for later finishing. Stress whitening, cracks, deep scratches, or localized thermal damage are different because the problem extends beyond ordinary surface texture.
Understanding this distinction early prevents a common mistake in transparent CNC plastic machining: assuming that every loss of clarity can simply be polished away after machining.
Where Surface Quality Is Lost During CNC Machining Transparent Plastic
Surface quality is created continuously during machining rather than at one final finishing step. Cutter condition, tool path, chip evacuation, heat generation, and the final cutting pass all contribute to the surface that will later be finished. I therefore evaluate them as connected manufacturing variables rather than isolated machining settings.
Tool Path, Cutting Condition, and Surface Texture
In transparent plastic machining, the final CNC pass has an important job: it should leave a controlled and reasonably uniform surface for subsequent finishing. Trying to obtain the final transparent appearance directly from the cutting tool is not always realistic, especially on complex prototype geometry.
A sharp and stable cutting condition produces a different surface from one created by worn tooling, unstable cutting, or repeated tool contact. The depth and consistency of machining marks matter because later finishing must remove or refine those marks before clarity can improve.
For this reason, I am less concerned with whether a freshly machined surface already looks transparent than with whether its condition is predictable. A consistent machining texture can be refined systematically. A surface containing isolated deep marks requires much more local material removal and creates greater risk during finishing.
The direction of tool marks can also matter on large visible areas. Once a part has broad transparent faces or curved cosmetic surfaces, inconsistent machining patterns become more difficult to remove uniformly without affecting edges or transitions.
Heat, Chip Control, and Local Surface Damage
Heat problems in transparent plastic machining are not determined by temperature alone. Cutting load, tool contact, chip evacuation, and repeated friction around the machining area influence how heat develops and where surface damage may appear.
Poor chip evacuation is a good example. When chips remain close to the cutting area, they can interfere with the tool and rub against newly machined surfaces. This can create additional heat and leave marks on areas that would otherwise have had a cleaner finish.
Local overheating or excessive mechanical stress can produce problems that are more serious than ordinary tool marks. Whitening, edge damage, fine cracking, or deformation may indicate that the material itself has been affected rather than only the outer surface.
This distinction affects how we respond on the shop floor. Fine machining texture can be addressed through controlled surface refinement. Once damage penetrates deeper into the material, additional polishing may no longer be the correct solution.
Workholding Can Damage a Clear Part Before Cutting Begins
Workholding is easy to overlook when discussing clear plastic quality because it does not directly create the machined surface. In practice, however, fixture contact, clamping pressure, part deformation, and repeated setups can leave defects that remain visible long after the cutting operation has been completed.
For ordinary opaque engineering parts, minor fixture contact may have little effect on how the finished component is evaluated. On a transparent cosmetic surface, the same contact point can become visible as a scratch, pressure mark, or local surface defect.
The challenge becomes greater when a transparent housing requires machining from several directions. A surface completed during the first setup may later become a support or contact area during another operation. If this sequence is not considered in advance, an already acceptable surface can be damaged simply while gaining access to another feature.
Thin-wall clear parts introduce another concern. Excessive clamping force can temporarily distort the geometry during machining, while insufficient support may allow vibration. Either condition can affect both dimensional control and the consistency of the resulting surface.
When planning CNC Machining Transparent Plastic, I therefore consider not only whether the part can be held securely, but where it can be held without compromising surfaces that must later remain visually clear.
Part Geometry Determines How Difficult Clarity Will Be to Recover
A surface that can be reached by a CNC cutter is not automatically easy to finish afterward. This becomes particularly important for clear prototypes because machining is only the first stage of the surface-quality process. Geometry determines both how a feature is cut and whether later finishing can reach it consistently.
Open external surfaces normally provide better access for both machining and finishing. Deep pockets, narrow channels, internal corners, and recessed transparent areas create a different situation. The cutter may be able to reach them, but hand finishing or polishing tools may have limited access.
This difference can lead to uneven clarity across the same part. An external face may be refined progressively to a high-quality transparent finish, while a narrow internal surface retains more visible machining texture because it cannot be treated in the same way.
Thin walls and delicate edges introduce a different limitation. These features may require careful support during CNC plastic machining, but they also restrict how aggressively material can be removed during later finishing.
Complex curved surfaces require similar attention because transparency must be improved without changing the intended profile. Excessive local sanding can soften an edge, flatten a transition, or alter a surface that also participates in assembly.
From a manufacturing perspective, this gives us a useful rule: machinable does not always mean finishable to the same clarity. For clear plastic prototyping, finishing access should therefore be considered when the geometry is first reviewed, not after machining has already been completed.
Why Polishing Cannot Correct Every CNC Machining Defect
Polishing is one of the most important processes for achieving a clear appearance, but it has physical limits. I view polishing as controlled material removal and surface refinement, not as a universal repair method. The deeper the defect, the more material must be removed before that defect disappears.
Fine and relatively uniform tool marks are usually suitable for progressive refinement. As the surface is processed through increasingly fine stages, deeper machining texture is replaced by smaller irregularities until light scattering is sufficiently reduced.
A deep scratch creates a different problem. Removing enough material to eliminate it may alter the surrounding surface. If that scratch is close to a sharp edge, hole, thin wall, or mating feature, aggressive polishing can begin to affect the geometry that the prototype was manufactured to evaluate.
Cracks and stress-related damage are even more restrictive. Once the problem extends below the surface, removing the visible evidence does not necessarily remove the underlying damage. Continuing to polish can therefore consume material without solving the real problem.
This is why defect prevention during machining is more valuable than relying on finishing to correct everything later. A controlled CNC surface gives the finishing process room to improve clarity while preserving the part itself.

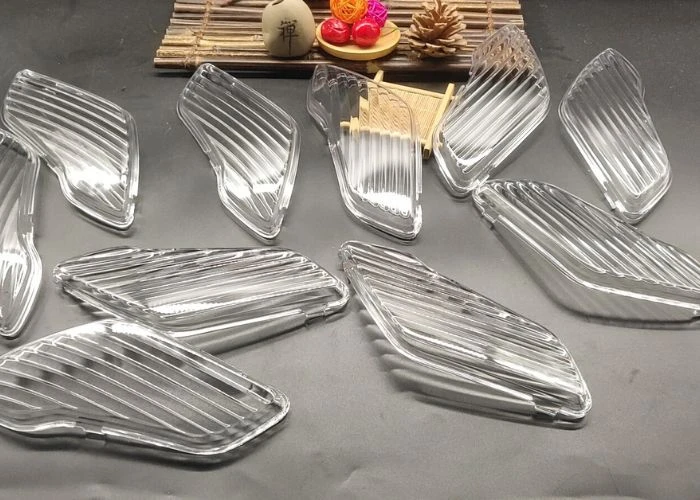

Restoring Clarity Without Losing Critical Geometry
The purpose of clear-plastic finishing is not simply to make every surface as glossy as possible. For an engineering prototype, the finish must improve visual clarity while preserving the dimensions, interfaces, edges, and surface relationships that give the part its functional value.
After machining, we normally work from the existing surface condition rather than immediately applying a final polishing operation. Deeper CNC marks need to be reduced progressively so that each stage creates a more uniform foundation for the next.
The amount of material removed becomes especially important near functional features. A transparent housing edge may also control the gap to another housing. A polished opening may locate a display or window. A small boss may contribute to both visual appearance and assembly position.
If finishing changes these areas excessively, the part can look better while becoming less useful for engineering evaluation. This is why I do not define a successful transparent prototype by maximum polish alone.
The better target is the required level of clarity with the required geometry still intact. That balance is particularly important when plastic prototyping is being used for both appearance review and assembly verification.
Visible and Functional Surfaces Need Different Levels of Control
A transparent prototype rarely has one uniform surface requirement. Some areas dominate what the customer sees, while others locate components, control gaps, accept fasteners, or remain hidden after assembly. Treating all of these surfaces identically can create unnecessary work or introduce dimensional risk.
A large exterior face on a transparent enclosure may justify careful surface refinement because even small inconsistencies are easily visible. An internal structural wall may not require the same cosmetic standard if it does not affect viewing through the part.
Functional interfaces need another type of control. Mating edges, mounting areas, locating surfaces, and holes may require less cosmetic processing but tighter protection of their geometry. Applying unnecessary polishing to these areas can change dimensions without adding meaningful visual value.
This is why visible-surface information is useful when we review a transparent prototype. It helps us determine where finishing effort contributes directly to the prototype objective and where geometry should take priority over cosmetic refinement.
For multi-part builds, this distinction can also improve consistency because each surface is controlled according to its role in the assembled product rather than according to one general instruction such as “polish all surfaces.”

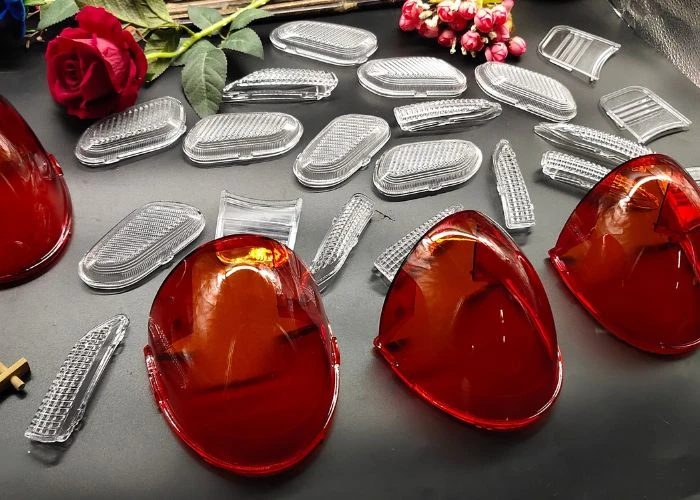

Clear Cosmetic Parts and Optical Parts Require Different Manufacturing Targets
The word “clear” can describe very different expectations. During quotation, I therefore want to understand what the transparent area is expected to do. A clear enclosure that allows internal components to be seen and a component designed to perform a defined optical function are not equivalent manufacturing requirements.
For many prototypes, the objective is cosmetic clarity. The customer needs to see internal structures cleanly, evaluate the product appearance, review a display through a window, or present a realistic transparent housing during a design review.
In these cases, the manufacturing target is primarily visual: consistent clarity, controlled surface appearance, clean edges, and acceptable viewing through the transparent area.
A true optical component may require control of additional characteristics such as optical distortion, defined surface form, or measurable transmission performance. These requirements go beyond normal cosmetic plastic prototyping and should be identified separately during project review.
Defining this difference early prevents the word “transparent” from creating unrealistic assumptions about manufacturing scope and inspection.
Different Transparent Plastics Require Different Machining Strategies
Transparent plastics should not be treated as one machining category simply because they transmit light. Their stiffness, toughness, thermal response, internal stress, and finishing behavior can differ. In our manufacturing review, the selected material therefore becomes one input to the machining strategy rather than the main subject of the project.
A cutting condition that produces a stable edge on one transparent plastic may not create the same result on another. The same applies to heat management, thin-wall machining, tool engagement, and the amount of finishing required after CNC machining.
Material condition can also matter within the same general plastic family. Stock quality, thickness, previous processing, and internal stress may influence how a transparent part responds once material begins to be removed.
For this reason, I prefer to match the machining plan to the actual material and geometry rather than apply one fixed recipe to every transparent prototype. Engineers who need a detailed comparison between specific transparent materials can evaluate that separately from the machining strategy itself.
When CNC Machining Is the Right Route for a Transparent Prototype
CNC machining becomes particularly useful when a transparent prototype must do more than show the general shape of a product. When material condition, controlled dimensions, assembly interfaces, machined features, or engineering evaluation are important, manufacturing directly from plastic stock can provide valuable prototype information.
For example, a clear housing may contain mounting holes, pockets, locating features, threaded inserts, or mating edges that need to relate accurately to neighboring components. In this situation, appearance and engineering geometry must be produced within the same part.
This is where CNC plastic machining can be particularly effective. The process gives us direct control over machined geometry while still allowing visible surfaces to receive additional hand finishing and polishing according to the prototype objective.
However, I do not recommend CNC simply because the material is transparent. If a project is focused mainly on rapid visual evaluation and has geometry that is inefficient to machine, another prototyping process may provide a more practical route.
The correct process should follow the engineering question the prototype needs to answer rather than the material name alone.
Planning a Transparent Plastic Prototype From CAD to Final Finish
A reliable clear prototype comes from planning machining and finishing together before production begins. When we review a new project, I look beyond whether the CAD model can be machined. I also consider which surfaces must remain clear, where the part can be held, and which features cannot tolerate dimensional change during finishing.
At UForProto, we manufacture plastic prototypes directly in our own production workflow. For transparent plastic prototyping, our review begins with the CAD geometry, material requirement, visible surfaces, critical interfaces, quantity, target appearance, and any assembly relationships that influence the part.
These factors influence one another. Geometry affects workholding and tool access; workholding determines which surfaces need protection; machining establishes the surface condition for finishing; and finishing must improve clarity without changing the geometry required for assembly or engineering evaluation.
Inspection should follow the same logic. Critical dimensions and interfaces need dimensional verification, while visible transparent areas need to be reviewed against the agreed appearance requirement. A clear part can only be considered successful when the characteristics that matter to the project have been preserved together.
For us, this is the practical meaning of CNC Machining Transparent Plastic: not machining first and trying to recover clarity afterward, but controlling the entire manufacturing sequence so the final part retains both its engineering purpose and its intended appearance.
Conclusion
Successful CNC Machining Transparent Plastic requires machining and finishing to be planned as one process. Surface quality, workholding, part geometry, and finishing access all influence the final clarity of a prototype. By controlling these factors early, we can improve transparent surfaces while protecting critical dimensions and assembly features. For a new transparent plastic prototype, send us your CAD files and project requirements for manufacturing review and quotation.
FAQs
1. Why Does Transparent Plastic Turn Cloudy After CNC Machining?
CNC cutting replaces the original smooth material surface with a new surface containing microscopic tool marks and irregularities. These features scatter light and make the machined area appear cloudy. The amount of haze depends on the cutting condition, resulting surface texture, and whether additional surface damage has occurred.
2. Can CNC Tool Marks Be Completely Removed From Clear Plastic?
Fine and consistent machining marks can often be progressively reduced through controlled finishing and polishing. Deep or isolated marks are more difficult because removing them requires additional material removal, which may affect nearby edges, dimensions, or functional features.
3. Can Polishing Fix Cracks or Deep Scratches in Transparent Plastic?
Not always. Polishing works by removing and refining surface material. A deep scratch may require excessive removal, while cracks or stress damage can extend below the visible surface. Preventing these defects during machining is generally more effective than attempting to remove them afterward.
4. Does Part Geometry Affect the Final Clarity of a CNC-Machined Plastic Part?
Yes. Open surfaces are generally easier to machine and finish consistently than deep cavities, narrow channels, internal corners, thin walls, or complex curves. Geometry affects not only CNC tool access but also whether subsequent finishing can reach the surface without changing important features.
5. How Should Visible Surfaces Be Marked for a Transparent Plastic Prototype?
Visible cosmetic areas can be identified in the drawing, CAD notes, or supporting reference images. It is also useful to distinguish them from mating surfaces, hidden areas, and dimensional interfaces so the manufacturer can apply finishing effort where appearance matters without unnecessarily altering functional geometry.
6. What Should I Include in an RFQ for CNC Machining Transparent Plastic?
A useful RFQ should include the 3D CAD file, required quantity, material specification if known, critical dimensions, visible transparent surfaces, target appearance, and relevant assembly information. If the requirement goes beyond cosmetic clarity, the expected optical performance should also be defined separately.
